What are metering units?

In essence, the metering Unit device is a connecting part between the high-voltage main power grid and the low-voltage measurement and control equipment, and is mainly responsible for two key tasks:
One is electrical isolation. It can separate the high-voltage main circuit and the low-voltage secondary system, so that the dangerous high voltage cannot be transmitted to the low-volt side, which can not only ensure the personal safety of the on-site staff, but also avoid the high-volt current damaging your precision electronic equipment.

The second is signal standardization. It can convert the raw power data in the power grid into a unified standard signal, so that your electric meter, relay, data monitoring system and other equipment can operate normally, which can not only help you accurately calculate electricity bills, but also quickly discover power grid faults.

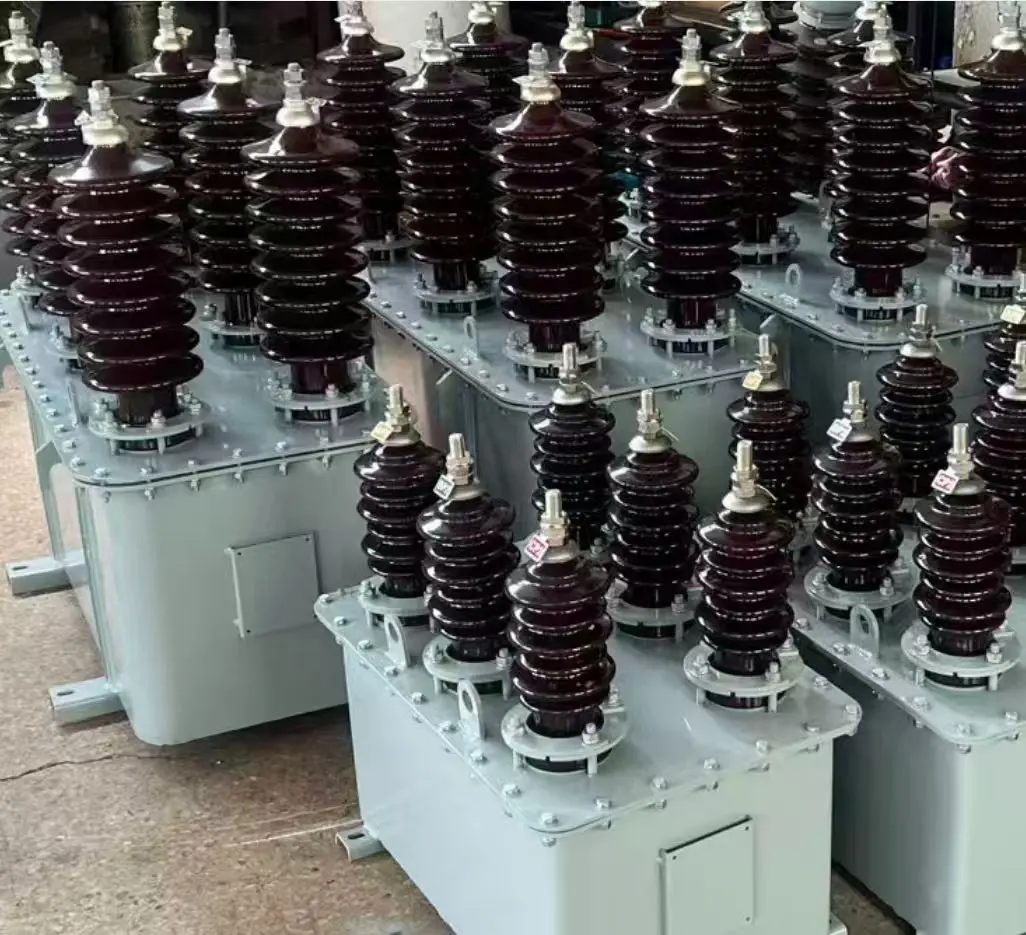

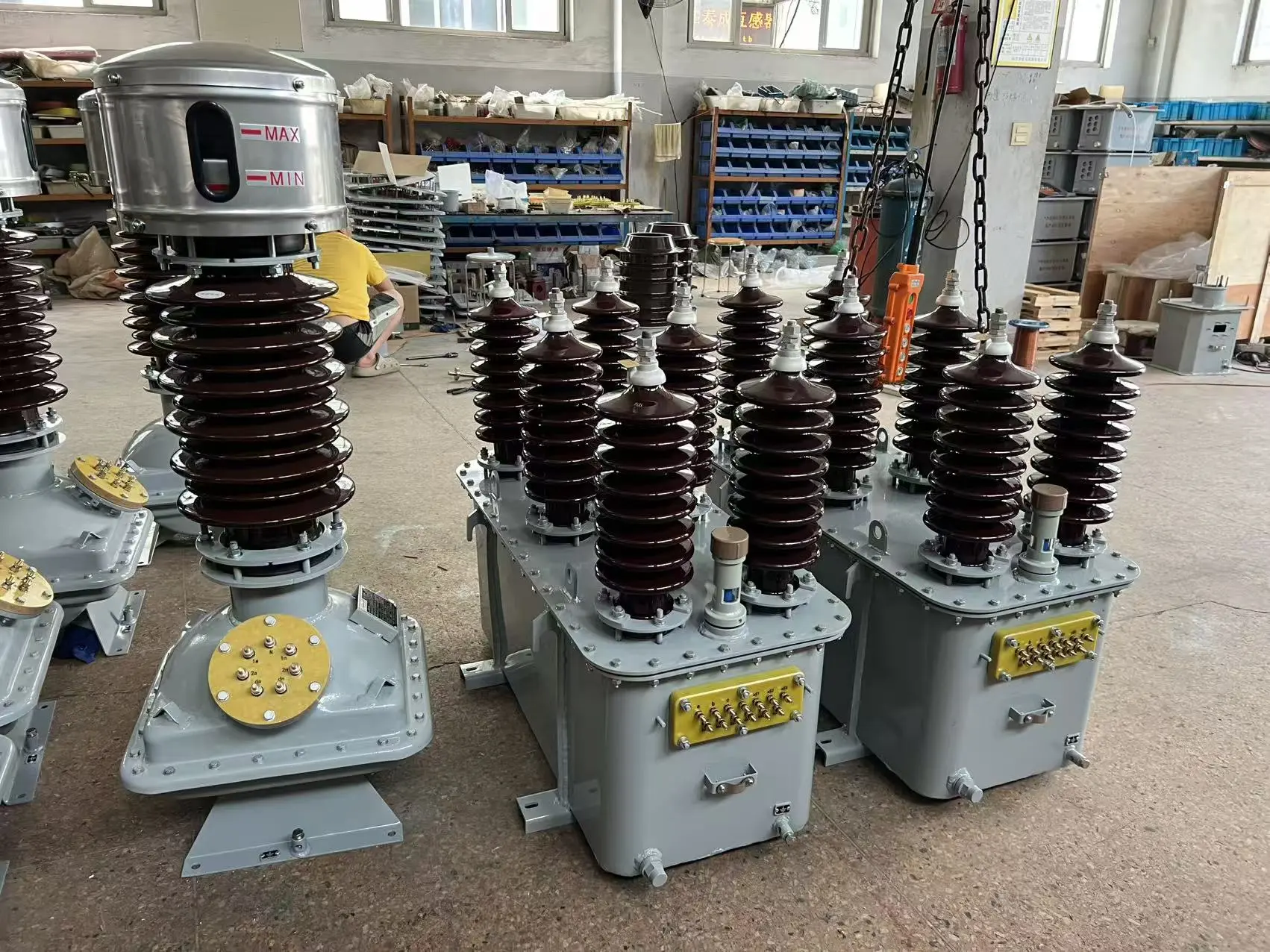

The metering unit, also known as meter transformer or instrument transformers is an electrical device. Its core function is to convert the high voltage and large current in the main power grid into a standard low voltage and small current signal, which is supplied to the transformer equipment for use. Common signal specifications are current 1A/5 A, voltage 100V / 110V. With it, your electrical system can safely and accurately perform measurement, monitoring, and protection work.
The main use scenarios of the metering unit

The metering device is indispensable in the power distribution network, and is specifically used in these scenarios:
1.Rod-type installation system: Suitable for 33kV- 40.5kV overhead transmission lines, mainly used to count the electricity consumption data in urban and rural areas.

2.Industrial facility support: can accurately measure the electricity consumption of high-power machinery, help enterprises reasonably control equipment load, and clearly allocate electricity costs.

3.Renewable energy grid connection: It can accurately count the power generation of photovoltaic and wind power plants, which not only ensures the smooth connection of new energy to the grid, but also ensures the accurate calculation of power generation revenue.

4.Substation equipment: It is crucial for the stable operation and analysis of power grid power quality protection relays, which can effectively reduce power outage accidents and reduce the risk of equipment damage.

conclusion
The metering unit is an inconspicuous but important device in the modern power system, which can transform the raw data of the power grid into usable information. Whether it is residential electricity billing or industrial electricity regulation, it can provide stable and reliable secondary signals for current and voltage transformers, and is an essential component for building a safe, efficient, and intelligent power network.
